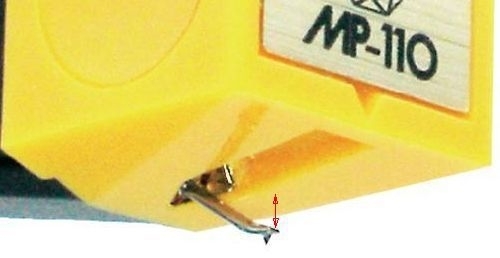

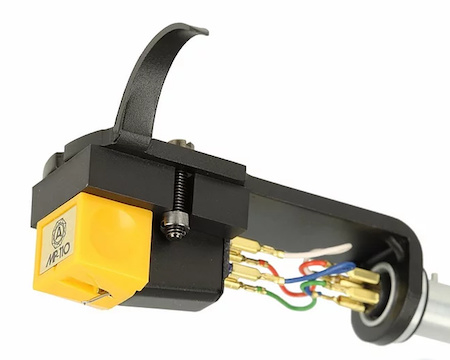

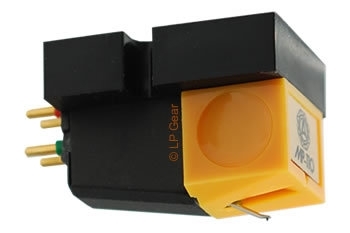

Nagaoka MP-110
OverviewNagaoka MP-110 the successor to the highly acclaimed and classic Nagaoka MP11 phono cartridge, the new Nagaoka MP-110 phono cartridge extends and strengthens its predecessor's prowess and talents to a new level of radiance. You'll hear more music, more detailed refinement to enjoy and savor. The Nagaoka MP-110 is the cartridge to start with and to keep for a long time.
Features-Superfine polished eliptical diamond bonded stylus-Powerfull samarium cobalt magnet-Lightweight aluminum alloy cantilever for high fidelity-Carbon fibre reinforced plastic shoe-Anti ferro magnetic permalloy shield casing
Specifications:
Type: Moving magnet
Cantilever: Aluminum alloy
Stylus type: Superfine polished elliptical bonded diamond with 0.4 x 0.7 mil radii
Weight: 6.5 g
Output voltage @ 1kHz,5cm/sec: 5mV
Frequency response: 20Hz-20kHz
Channel balance @ 1kHz: > 1.5dB
Channel separation @ 1kHz: > 23dB
Recommended loading: 47k ohms
Dynamic compliance: 6.0 x 10-6 cm/dyne
Static compliance: 18 x 10-6 cm/dyne
Tracking force range: 1.5 - 2.0 g
Break-in period: 30 hours
