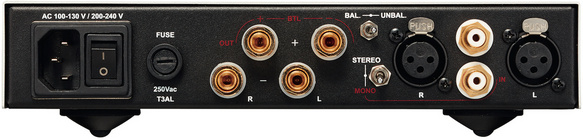

NUPrime DAC-9

With its AES and XLR outputs and decoding capability of PCM 384K & DSD256, the NuPrime DAC-9 is a reference-class DAC designed for studio professionals. With four digital and one analog stereo inputs, the DAC-9 is a full-featured DAC and preamp ideally suited for high-end systems.

Specifications:

• Inputs:
  • 1 x USB PCM / DSD Digital (PCM up to 384kHz & DSD up to DSD256 )
  • 1 x Coaxial Digital S/PDIF (PCM up to 192KHz supporting DoP format DSD64)
  • 1 x Optical Digital S/PDIF (PCM up to 192KHz supporting DoP format DSD64)
  • 1 x Bluetooth or WiFi receiver module (optional).
  • 1 x AES balance XLR (PCM up to 192KHz)
  • 1 x Analog Stereo RCA (does not go through A2D conversion, analog input is selected by the preamp directly to analog outputs)
• Outputs:
  • 1 x pair of stereo RCA out (max output 4V)
  • 1 x pair of stereo XLR balanced out (max output 8V)
  • 1 x Optical S/DPIF out
• USB Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz and DSD 2.8MHz(64), 5.6MHz(128), 11.2MHz(256)
• S/PDIF Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96, 176.4KHz, 192KHz, 352.8KHZ, 384KHz (Coaxial)
• Bit Resolution: 16-32-bits
• THD+N: 0.0015%
• Dynamic range: >-113dB
• Frequency Response: 10Hz to 80kHz
• Dimensions: 235 mm W x 281 mm D x 55 mm H (including feet)
• Weight: 2.3Kg
