Gold Note PH-10

The Gold Note PH-10 is a pure analog design, specially made with the best components to recreate the musical event as naturally as possible; it has unique features such as EQ CURVES, LOAD and GAIN adjustments making it an extremely customizable phono preamp.

The PH-10's controls, the Single Knob Control, are designed to be as simple and uncomplicated as possible. This rotating joggle, in combination with the color display, allows you to quickly adjust any setting while the music plays.

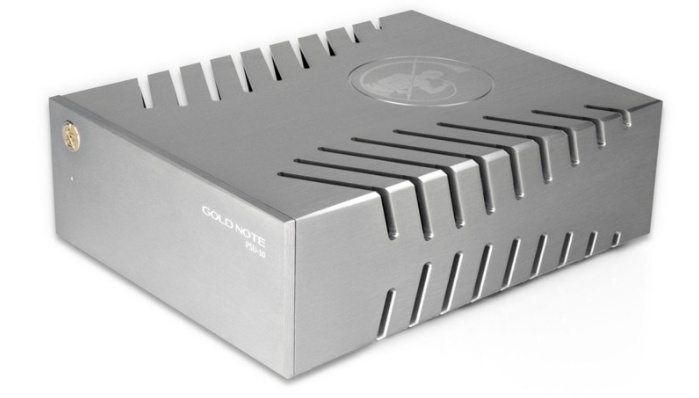

The PSU-10 is designed to complement the PH-10, a specialized external superinductive power supply that allows the phono stage to function optimally, leading to an even more lifelike musical experience, enhanced dynamics and expanded soundstage.

Specifications :
ANALOG INPUTS: MM/MC two independent stereo RCA
ANALOG OUTPUTS: Stereo unbalanced RCA and balanced XLR
SUBSONIC FILTER: 10Hz/36dB octave
THD: <0.05%
SIGNAL TO NOISE RATIO: -89dB
DYNAMIC RESPONSE: 105dB
FREQUENCY RESPONSE: 20Hz – 20KHz [Enhanced 20Hz – 50KHz] @ +/- 0.3dB
LINE OUTPUTS LEVEL: Stereo RCA @ 2V and balanced XLR @4V
INPUT SENSITVITY: 0.1mV MC up to 7.0mV MM
INPUT IMPEDANCE: 10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ
GAIN: 45/65dB (+6dB/-3dB)
DIMENSIONS: 200mm W 80mm H 260mm D
